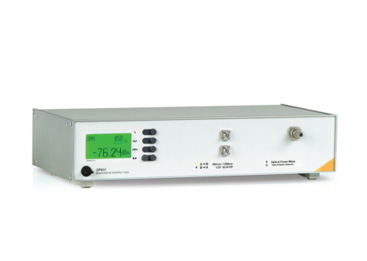

The OP831 is designed to perform bi-directional insertion loss measurements on single-fiber OR multi-fiber optic cables with optical switches. The integrated source and power meter together with the OPL-PRO application software allow for a fully automated bi-directional insertion loss analysis of the connected cable. This rack-mounted instrument can be equipped with either single wavelength or dual wavelength Laser or LED sources.
Features
Streamlines and automates bi-directional insertion loss testing
On-board optical power meters feature relative accuracy of 0.02dB between 0dBm and -65dBm
Wide variety of source wavelength options, including 635nm, 850nm, 1310nm, and 1550nm among many others
Various types of sources including LEDs, Fabry-Perot Lasers, and VCSELs
Customizable fiber type such as 9/125μm, 50/125μm, 62.5/125μm. Please contact Optotest for other options
Many common source connector outputs such as FC, SC, and ST
Can be controlled remotely via USB
Integrated temperature monitoring
Convenient 19-inch rackmount frame
Can be used to test multi-fiber patchcords when paired with two OP720 switches and software
