    • Product introduction

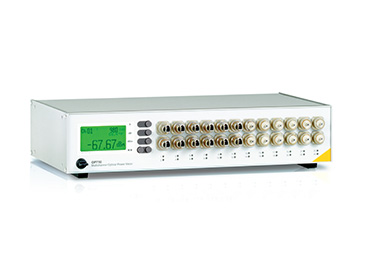

      The OP710 is available with 4 to 24 channels and can be configured for an assortment of detector and connector interfaces. With the rack mount option, multiple instruments can be combined and configured for even higher channel counts

      Up to 24 channels of individual optical power meters

      • Measurement range

      InGaAs: +6dBm to -72dBm

      Silicon: +3dBm to -65dBm

      Broad wavelength spectrum

      InGaAs: 830nm to 1700nm

      Silicon: 400nm to 1100nm

      Relative accuracy of 0.02dB

      Measurement display resolution down to 0.001dB

      Variable sampling rate via software

      Can be controlled remotely via USB

      Integrated temperature monitoring

      Convenient 19-inch rackmount frame
