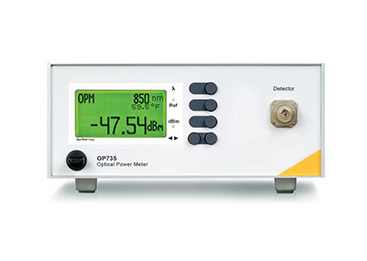

The OptoTest OP735 Benchtop Optical Power Meter can be configured with up to 4 channels and a mix of InGaAs, Silicon, and High Power Detectors. This unit is ideal as a compact, stand-alone power meter or used in conjunction with a stabilized light source to measure insertion loss.
Designed for high speed data acquisition on fiber optic components, the OP735 provides absolute or relative measurements with high resolution and tight linearity specifications.
The unique remote head solution gives the user more flexibility with hard to manage components or bulky fiber optic cables. Our series of detectors include a remote head or an Integrating Sphere which is ideal for bare or ribbon fibers. Adapters are available for all common connector types including FC, ST, SC, LC, etc.
Features
Up to 4 channels of individual optical power meters
• Broad wavelength spectrum
InGaAs: 830nm to 1700nm
Silicon: 400nm to 1100nm
Measurement range
InGaAs: +6dBm to -72dBm
Silicon: +3dBm to -65dBm
Relative accuracy of 0.02dB
Measurement display resolution down to 0.001dB
Variable sampling rate via OPL-7 and custom DLL program
Can be controlled remotely via USB
Integrated temperature monitoring
Convenient benchtop size
