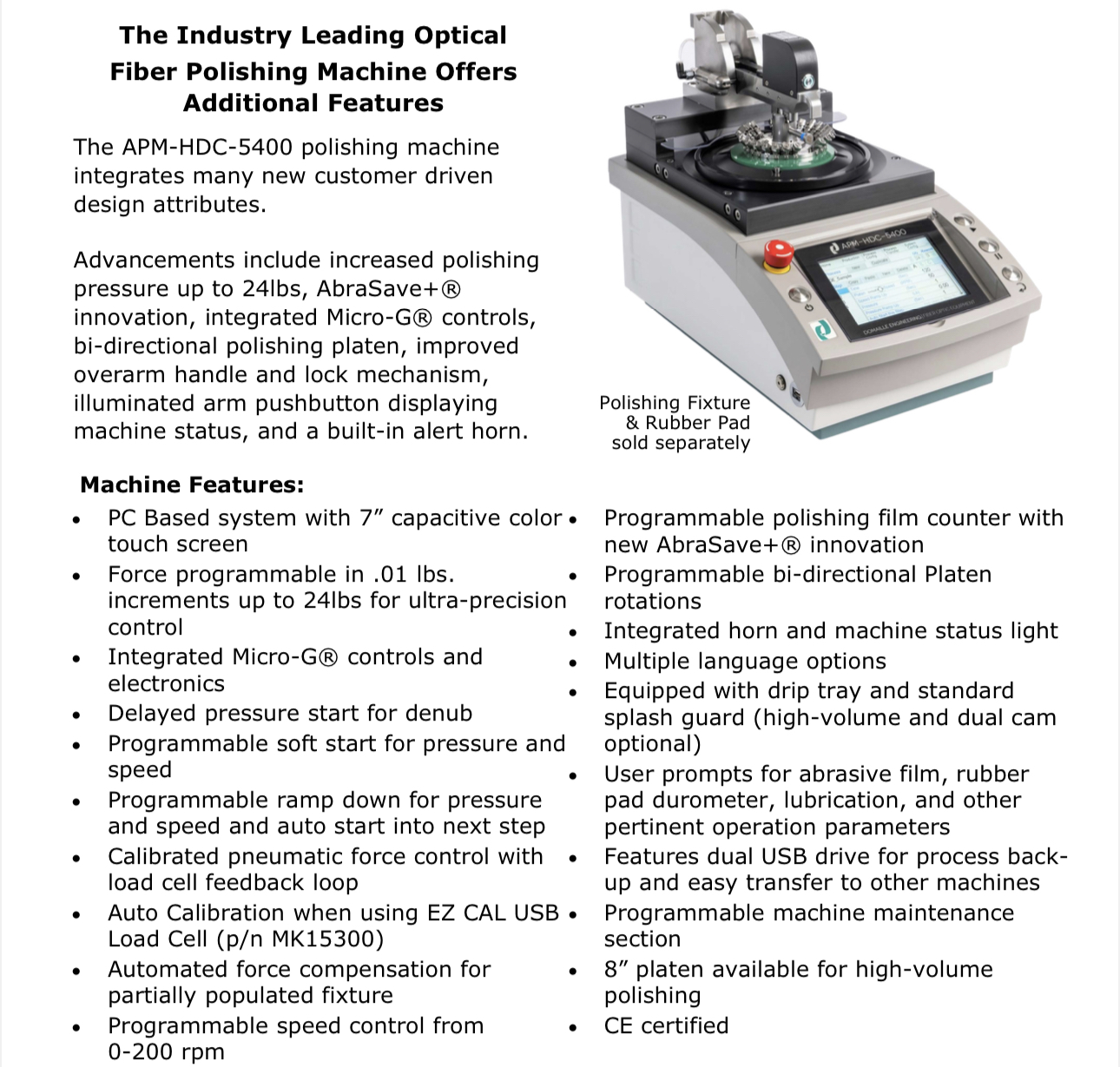

The APM-HDC-5400 polishing machine integrates many new customer driven design attributes.
Advancements include increased polishing pressure up to 24lbs,AbraSave+® innovation,integrated Micro-G® controls,bi-driectional polishing platen,improved overarm handle and lock mechanism,illuminated arm pushbutton displaying machine status,and a built-in alert horn.
Machine Features:
（1）PC Based system with 7″ capacitive color touch screen
（2）Force programmable in 0.1lbs increments up to 24lbs for ultra-precision control
（3）Integrated Micro-G® controls and electronics
（4）Delayed pressure start for denub
（5）Programmable soft start for pressure and speed
（6）Programmable ramp down for pressure and speed and auto start into next step
（7）Calibrated pneumatic force control with load cell feedback loop
（8）Auto Calibration when using EZ CAL USB Load Cell(p/n MK15300)
（9）Automated force compensation for partially populated fixture
（10）Programmable speed control from 0-200 rpm
（11）Programmable polishing film counter with new AbraSave+® innovation
（12）Programmable bi-directional Platen rotations
（13）Integrated horn and machine status light
（14）Multiple language options
（15）Equipped with drip tray and standard splash guard(high-volume and dual cam optional)
（16）User prompts for abrasive film,rubber pad durometer,lubrication,and other pertinent operation parameters
（17）Features dual USB drive for process backup and easy transfer to other machines
（18）Programmable machine maintenance section
（19）8″ platen available for high-volume polishing
（20）CE certified
