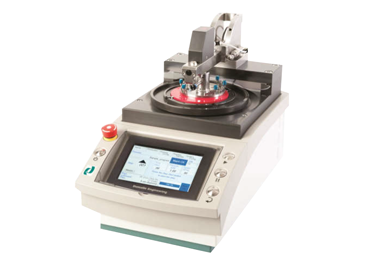

    The APM-HDC-5320 machine integrates many new customer driven design attributes.

    Advancements include increased polishing pressure up to 20lbs, overarm sensor, 7” capacitive touch screen, additional language options and expanded memory.

    Machine Features:

    PC Based system with 7” capacitive color touch screen

    Force programmable in .01 lbs. increments up to 20lbs for ultra-precision control

    Delay pressure start

    Programmable soft start for pressure and speed

    Programmable ramp down for pressure and speed

    Calibrated pneumatic force control with load cell feedback loop

    Automated force compensation for partially populated fixture

    Programmable speed control from 0-200 rpm

    Multiple language options

    Equipped with drip tray and standard splash guard, (high volume and dual cam optional)

    User prompts for abrasive film, rubber pad durometer, lubrication and other pertinent operation parameters

    Features USB drive for process back-up and easy transfer to other machines

    Programmable polishing film counter

    Programmable machine maintenance section

    CE certified

    8” platen available for High Volume polishing
